SPECIFICATIONS

Battery Properties: Without Battery

Item ID: PQ2300076

Operating Voltage: ≤36V

Origin: Guangdong,China

Power Mode: Car Plug

Walkie-talkie Frequency Band (MHZ): 29/50/144/430 MHZ

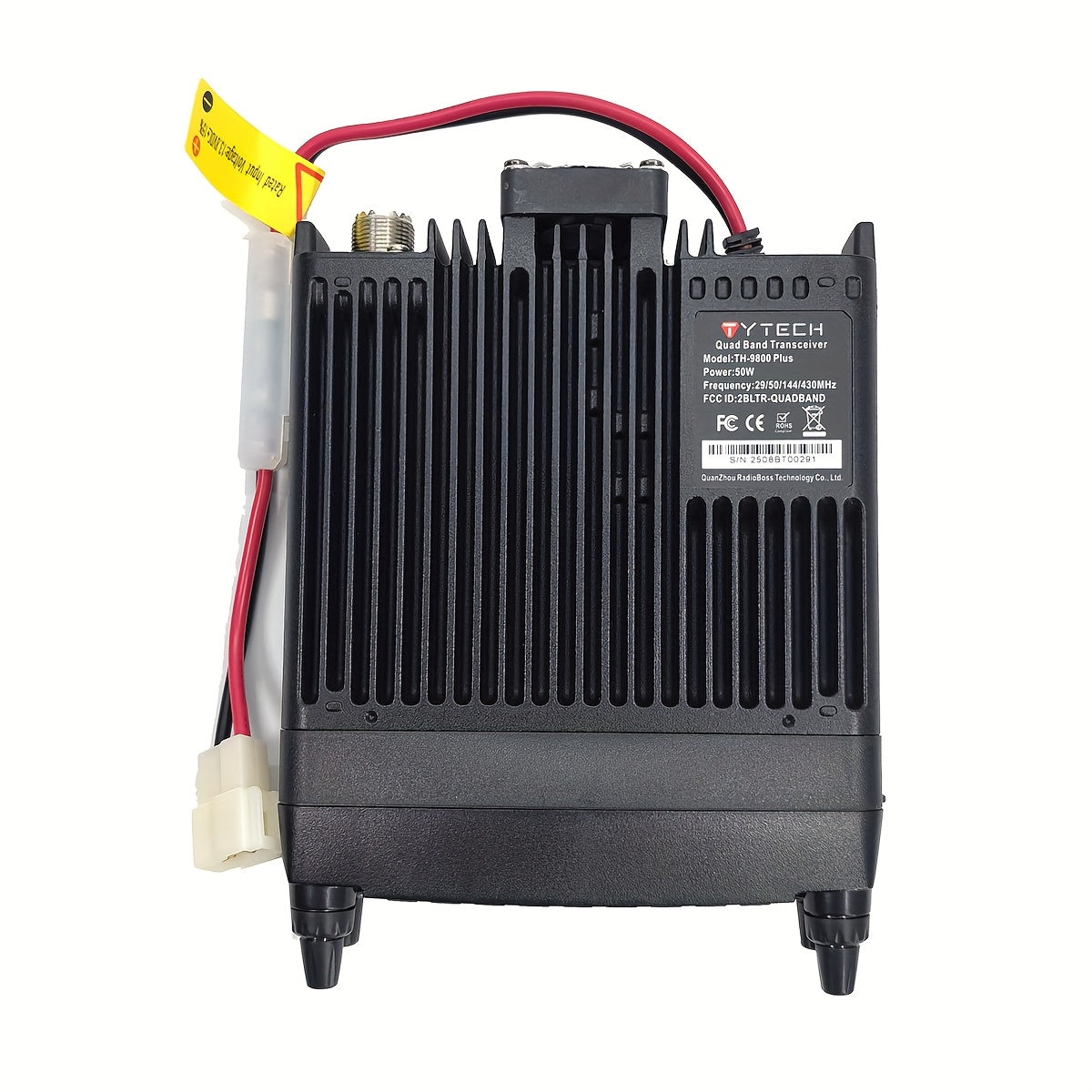

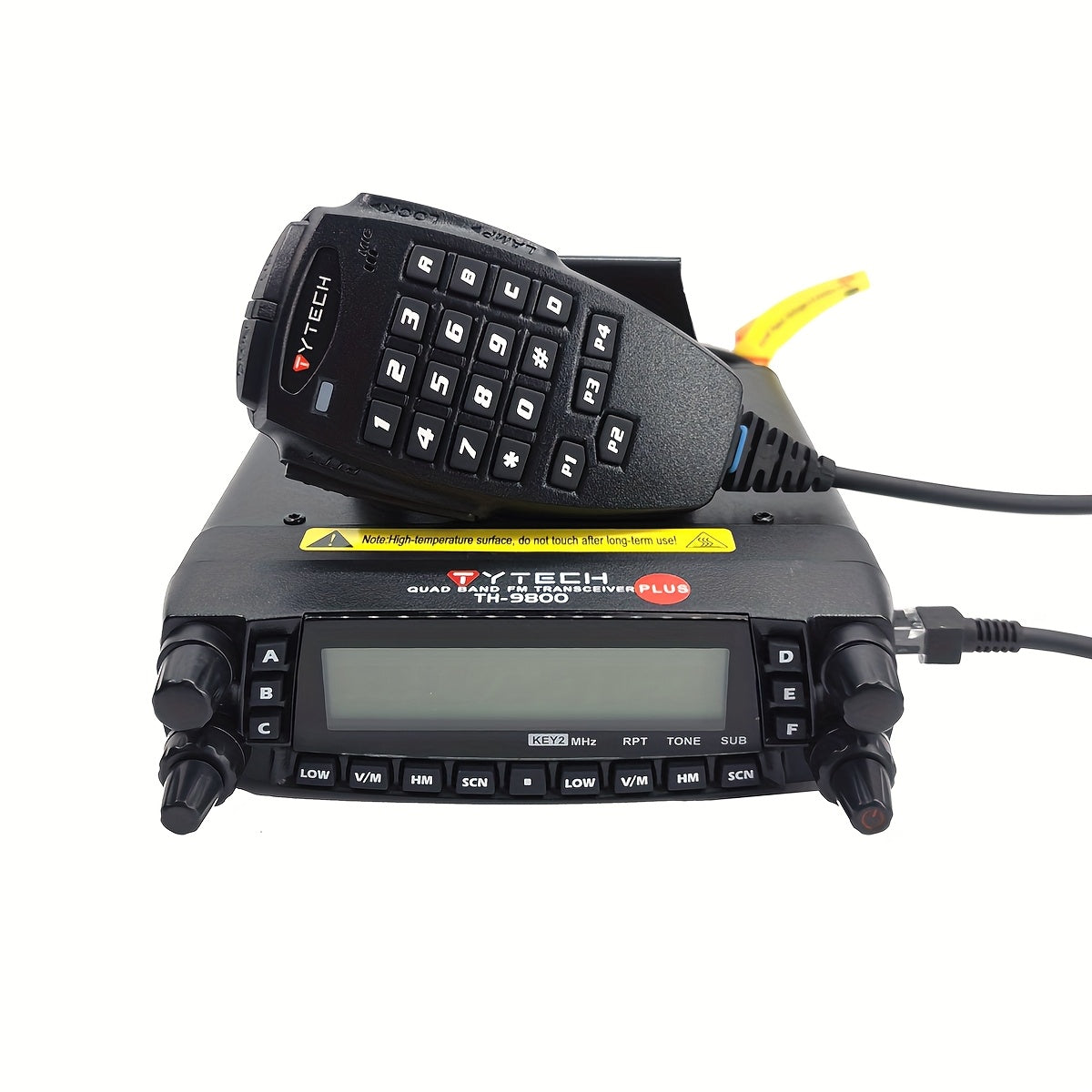

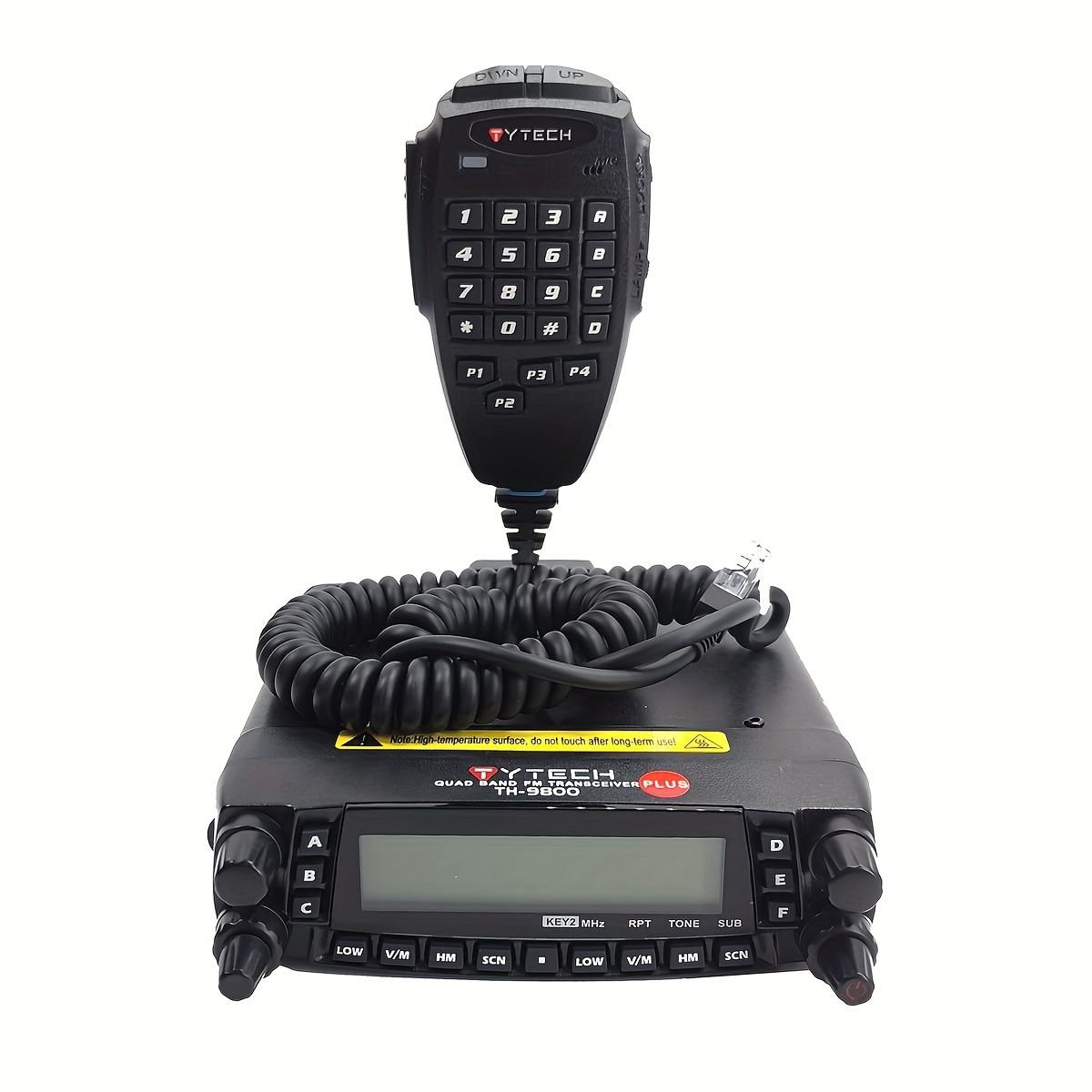

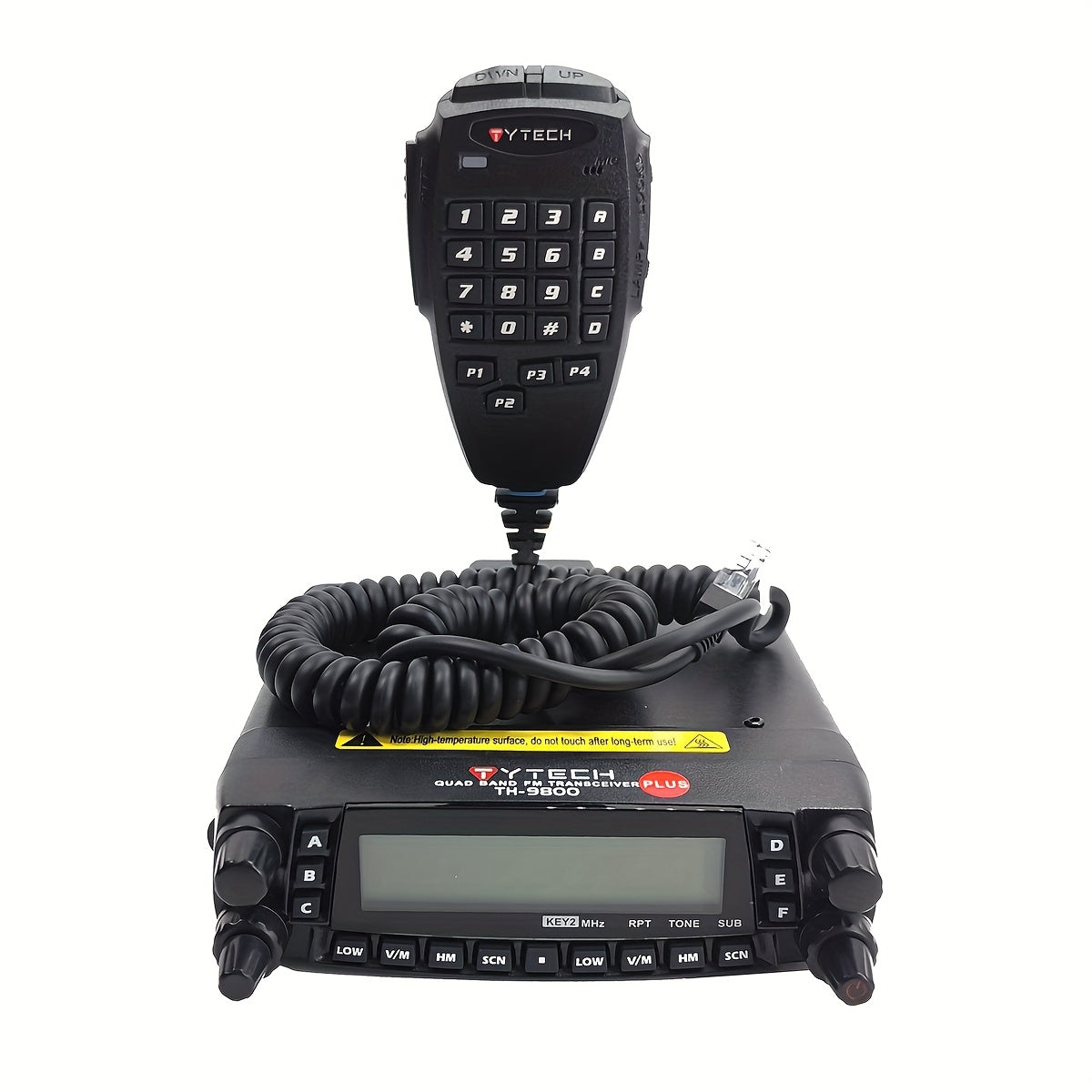

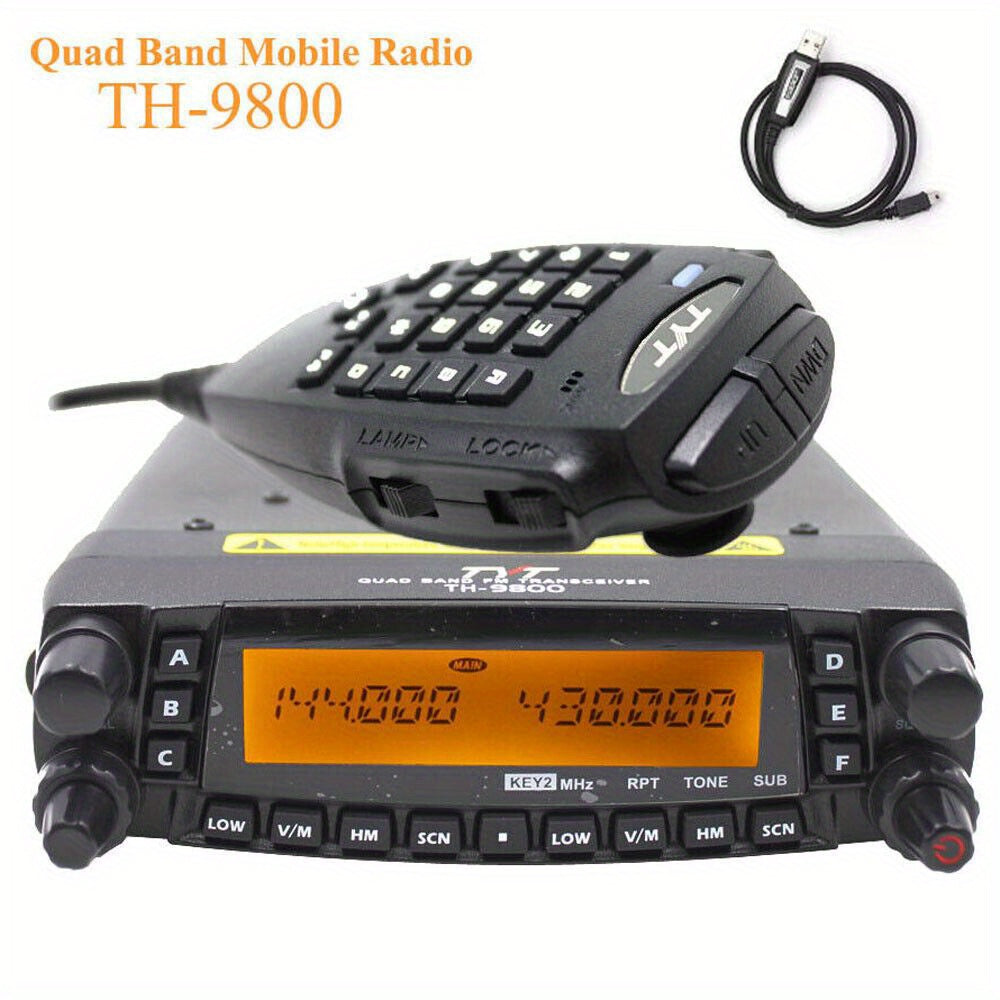

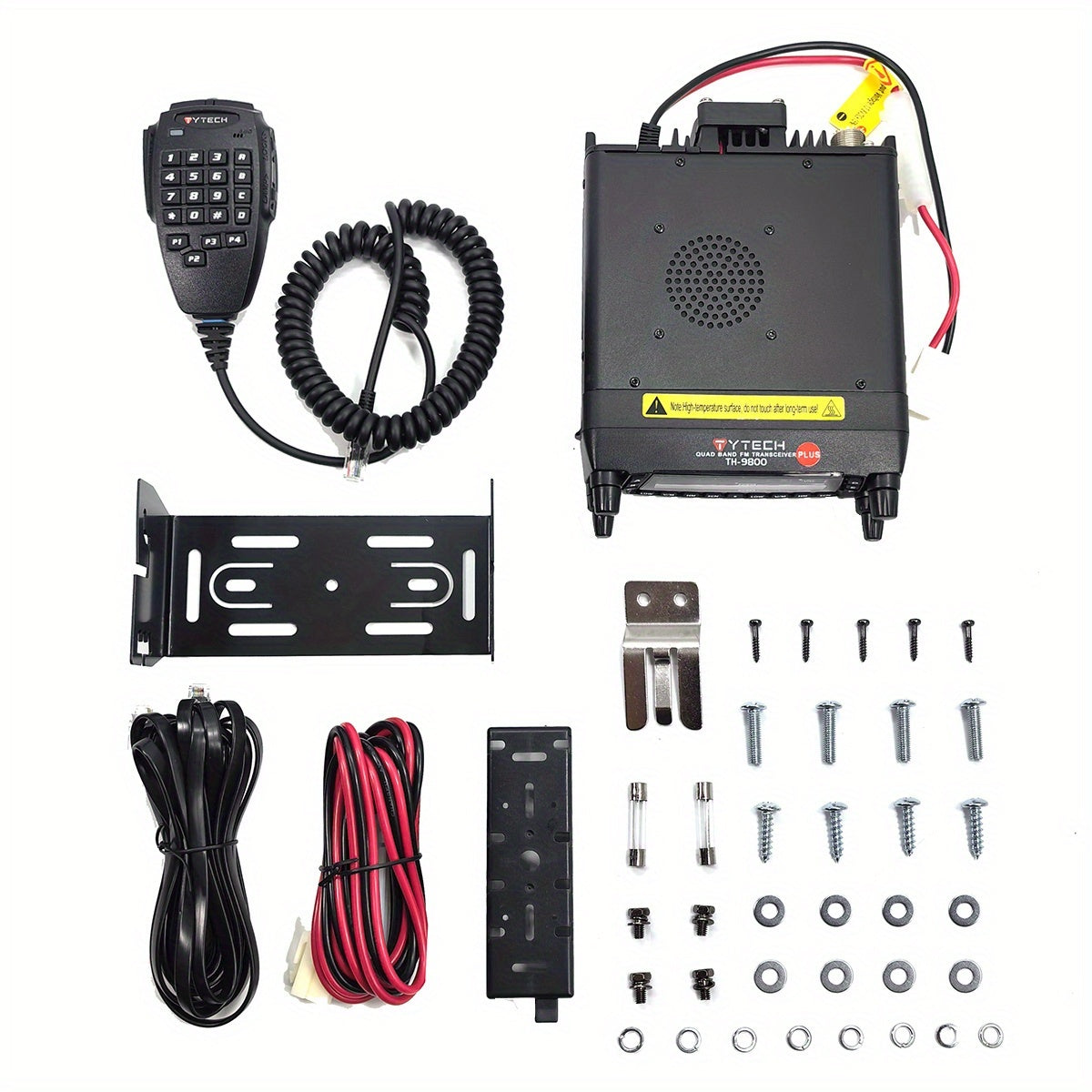

Latest Version TYT TH-9800 Walkie Talkie 50W High Power Quad Band DTMF FM Radio With Cross Band Repeat +USB Programming Cable Main features  Quad band transmit and receiver Cross Band Repeat  Separately Front Panel 809 Memory Channels DTMF Microphone Fm Radio 108-135.995MHz High/Low Output Power Levels Reverse Frequency Selection Dual Repeater Offsets Select-Able Multi Scanning

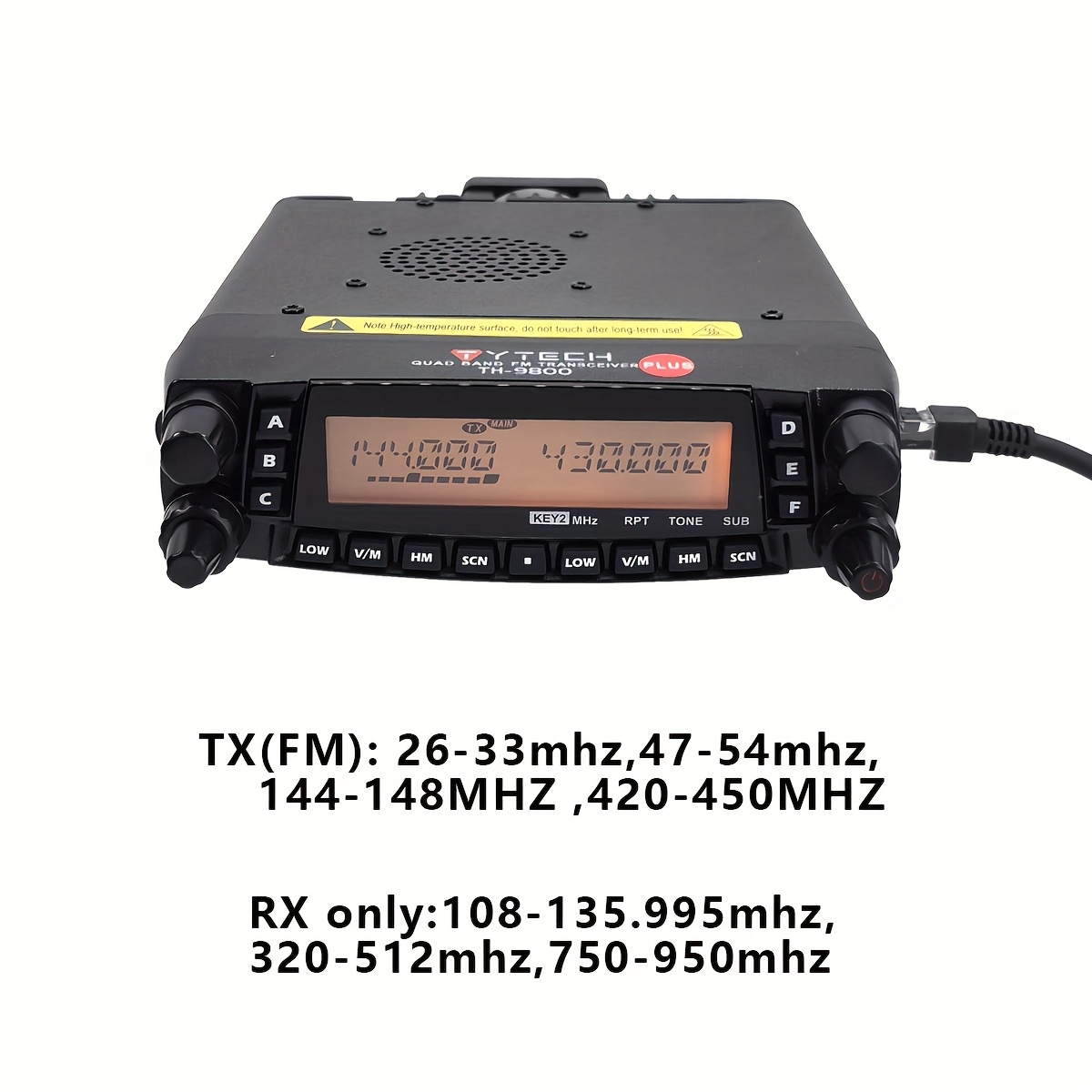

Repeater Offset Keypad Lock Function Channel Name Editing Ctcss/Dcs Encode/DecodeSpecificationModelTH-9800Frequency RangeRX only:108-135.995mhz,320-512mhz,750-950mhz(Cellular Blocked)TX(FM): 26-33mhz,47-54mhz,144-148MHZ,420-450MHZChannel Capacity809 ChannelsChannel Spacing2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHzModes of emissionF3Antenna Impedance50 Ohms,unbalanced (Antenna Duplexer built-in)Frequency Stability±5PPM@-140℉~+140℉(-10℃～+60℃)Operating Voltage

-4℉~+140℉(-20℃～+60℃)Operating Temperature Range13.8VDC (±15%),Negative groundCurrent Consumption(Approx)RX:0.5A(Squelched)TX:8.0A(50/430MHZ),8.5A(29/144MHZ)Case size(W×H×D)140*41.5*168 mm (w/o knobs & connectors)Weight1.2kgTransmitteroutput power50/20/10/5W(29/50/144MHZ),40/20/10/5W(430MHZ)Modulation TypeVariable ReactanceMaximum DeviationBetter than -60dB(29MHZ: Better than -50dB)Modulation DistortionLess than 3%Microphone Impedance2kΩReceiverCircuit Type

Double-conversion super-heterodyneIntermediate Frequency49.95MHz/450KHz (left band)38.85MHz/450KHz (right band)Sensitivity (for 12dB SINAD)Better than 0.2μVSquelch SensitivityBetter than 0.16μVSelectivity (-6dB/-60dB)12KHz/30KHzMaximum AF output:2W@8Ω for 5% THDAF Output Impedance4-16Ω
